For the revese lights and nuetraL switch use the plug that the plug in the white plug in the 5th picture went to, two wire will be to reverse light switch and two to nuetral switch, I can't remember what colours are what ATM been a couple years since I had to think about it, your shifter should have a switch with terminals fir the wires.
All you can hook up is the reverse lights and they will run off the switch from your shifter. They are a light green and a pink wire. Neutral start also runs off the shifter and its way easier just to wire this up to the purple wire at the ignition switch. You'll will have to run an aftermarket shifter so u can piss all those factory auto plugs off
ok so I am confused, the reverse and neutral wires come from the white plug in picture 6 or the gear selector one in picture one?
Ok so which ones???

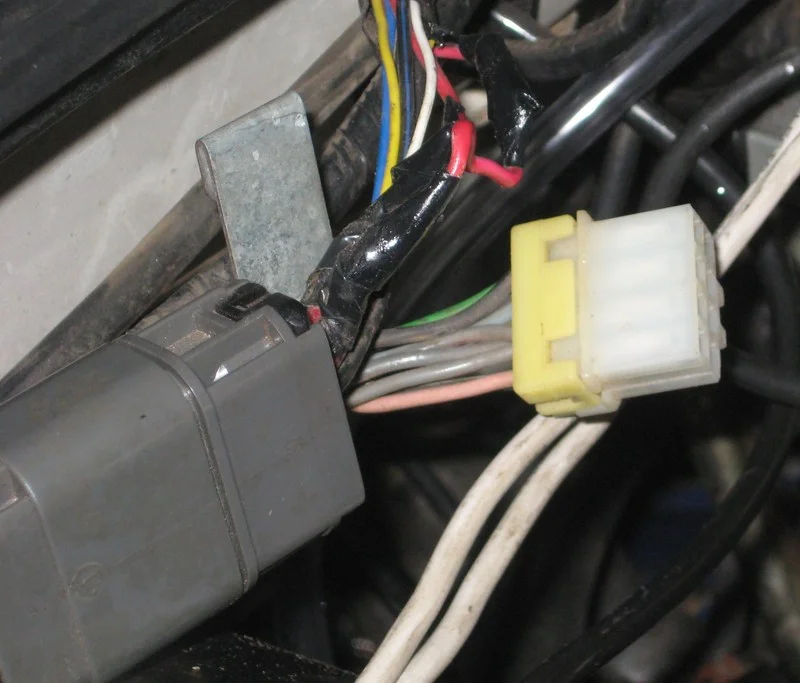

the white plug in this picture leads to the other white plug in pic number 5
The grey one in this pic leads to the gear selector in the first pic
What shifter are you using? Like I said the reverse lights are a light green and pink wire. They are in that plug up there ^^ Theres no neutral switch with a powerglide, not that you need it with an aftermarket ecu anyway
found where they were.
the neutral switch was two red wires, and the reverse were two black and white wires. They were both from the grey plug so I don't no why other people could locate them in the white plugs :S
