Quote:
Originally Posted by BUSTA 1

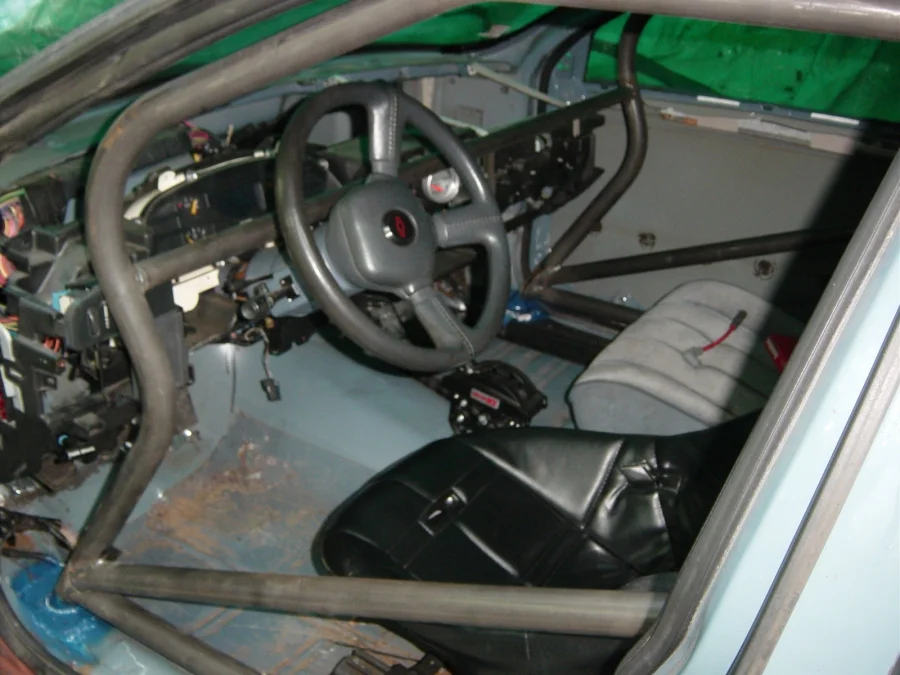

Someone by the name of 6boost requesting photos of colins cage here it is, was painted in the car with the head roof lining in....... Very hard job but well worth it in the end......
Give Kyle at 6boost a ring he will be able to sort it out for you.......
Is this cage Andra approved with the bent taxi bar and the rear c pillar bars bending in to meet the chasis rails in the boot? This is how i want my cage but was told it wont pass a andra tech (by an andra official) ???
Some original photos have not been recovered yet.
Quote:
Originally Posted by 5spdvl
Does that have side intrusion bars? Anything in the tray?
yea there just bolt in ones so i dont have to run them on the street and it goes into the tray but not through the back window so its more a 4 point didnt want two bars going out the back window cant run hard lid and **** its more a street car so cage is there for a just in case
Quote:
Originally Posted by ANK
i just dont feel the a piller things
thats wat i thought when i first told them to put them in but now there growing on me to bad if i dont like it now wats done it done i suppose once trim and **** is in and the black out a little bigger than factory on the front screed wont notice them as much. at least one thing i suppose its tied into the body now
Quote:
Originally Posted by 1000+hp
Is this cage Andra approved with the bent taxi bar and the rear c pillar bars bending in to meet the chasis rails in the boot? This is how i want my cage but was told it wont pass a andra tech (by an andra official) ???
I didn't build that cage but did ollies which is almost identical, only moly. The cage you see pictured was BUILT by an ANDRA tech inspector, so yes, it will pass, if not find another inspector as he's a doodle. RE the bent bars in the boot, the cage has a 1 1/2" bar under the rear shelf between the 2 bars, just after the bend, giving back any strength lost by the bend, if not improving it over straight bars.
IMO the rear bars are a waste of time anyway, I hardly see how most I've ever seen would mke any difference in an impact, they would fold in so easily they are almost pointless. If they were to be of any advantage, I would have thought they should have a cross bar like you do across the front window. I don't write the rules tho!!
6BOOST
Quote:
Originally Posted by 6BOOST
I didn't build that cage but did ollies which is almost identical, only moly. The cage you see pictured was BUILT by an ANDRA tech inspector, so yes, it will pass, if not find another inspector as he's a doodle. RE the bent bars in the boot, the cage has a 1 1/2" bar under the rear shelf between the 2 bars, just after the bend, giving back any strength lost by the bend, if not improving it over straight bars.
IMO the rear bars are a waste of time anyway, I hardly see how most I've ever seen would mke any difference in an impact, they would fold in so easily they are almost pointless. If they were to be of any advantage, I would have thought they should have a cross bar like you do across the front window. I don't write the rules tho!!
6BOOST
Thanks for the feed back. I agree 100% about the rear cross bar! Ideal cage because its way less noticeable than running straight down the middle of the back window and also a bit safer for rear passengers too id imagine?
Quote:
Originally Posted by 1000+hp
Thanks for the feed back. I agree 100% about the rear cross bar! Ideal cage because its way less noticeable than running straight down the middle of the back window and also a bit safer for rear passengers too id imagine?
that would be my car......as kyle said the guy that did it is a andra tech inspector......when i got the cage done he was given very clear instructions to make the cage un-obtrusive as possible, he did just that as from outside the car you would be hard pressed to even see the cage.....
Quote:
Originally Posted by cmy747
that would be my car......as kyle said the guy that did it is a andra tech inspector......when i got the cage done he was given very clear instructions to make the cage un-obtrusive as possible, he did just that as from outside the car you would be hard pressed to even see the cage.....
Thats some damn fine work you got there! It seems to me that type of cage down here in Sydney is all "too hard" for most, "that wont pass" by some cage builders then i asked a andra tech and he said the same? Doodle aint the word for it! Cheers.
Quote:
Originally Posted by ZZZ747
The cages with the kink around the dash in them aren't ANDRA certified, so if you plan to take your car to a meet you will be kicked off, or forced to remove the front section of the cage.
As already said, save up and spend the money on a good weld in cage.
Is that a fact there? Its how mine has been fabricated "not through the dash" and i heard that a while ago but since ive been going too the drags ive seen plenty of cars with them around the dash.Anyone else got any light on it?
here is a photo of the back section of me cage
i think its around 50kg all up i only weighed the front section still a few other little bars to go in around the top of the 4 link and stuff
Some original photos have not been recovered yet.
Quote:
Originally Posted by MR YEHA
Is that a fact there? Its how mine has been fabricated "not through the dash" and i heard that a while ago but since ive been going too the drags ive seen plenty of cars with them around the dash.Anyone else got any light on it?
It's a fact. Thats why the Japanese made one aren't legal here, supposedly it creates a weakness bending the bar around the dash.
Best way is to snap freeze it, with liquid nitrogen I think, then it just breaks off easily. Some people heat it up but then it just goes all gooey and makes a big mess. Either way its time consuming, I chipped all the deadening off an rx7 race car once, took forever.
