Hey Guys, I need to go to a crank trigger setup as keep getting bad timing jitter. Has anyone done it while retaining the a/c on RB30? A few places do kits but you need to remove aircon. Car is a daily driver and live up in Cairns. So not to keen on parting with the a/c. Ian

I sorted my timing jitter problems out by adding another timing belt tensioner, so it's tensioned on both sides.

Some people use the front of the cam wheel as their crank trigger. Have a bit of search on the forum for it.

Quote: Originally Posted by 5spdvl [View Post] Some people use the front of the cam wheel as their crank trigger. Have a bit of search on the forum for it. the cam wheel can still cop jitter from the belt stretch all the kits i've seen for crank pick ups are with a/c sorry bud

Got a disc and a sensor. Going to make up a bracket etc to suit

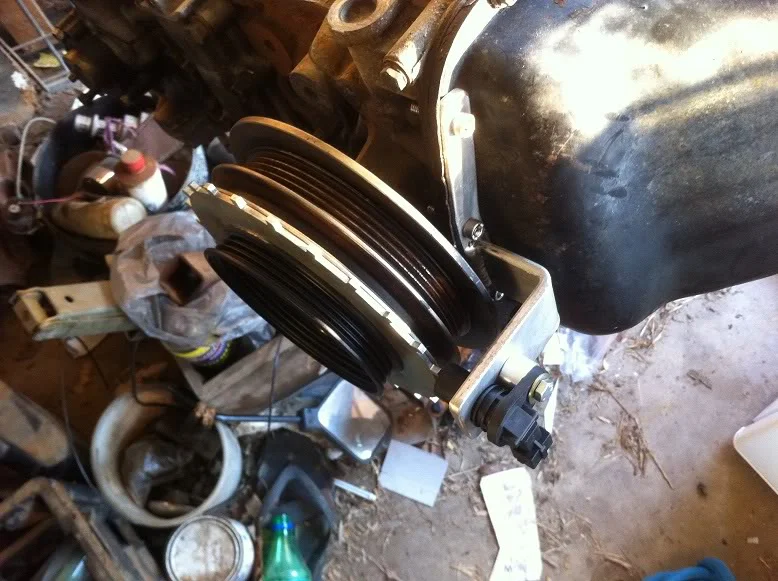

Disc machined out and weled to p/s pulley. And made a bracket up which bolts to the front of sump. Hopefully it works ok.

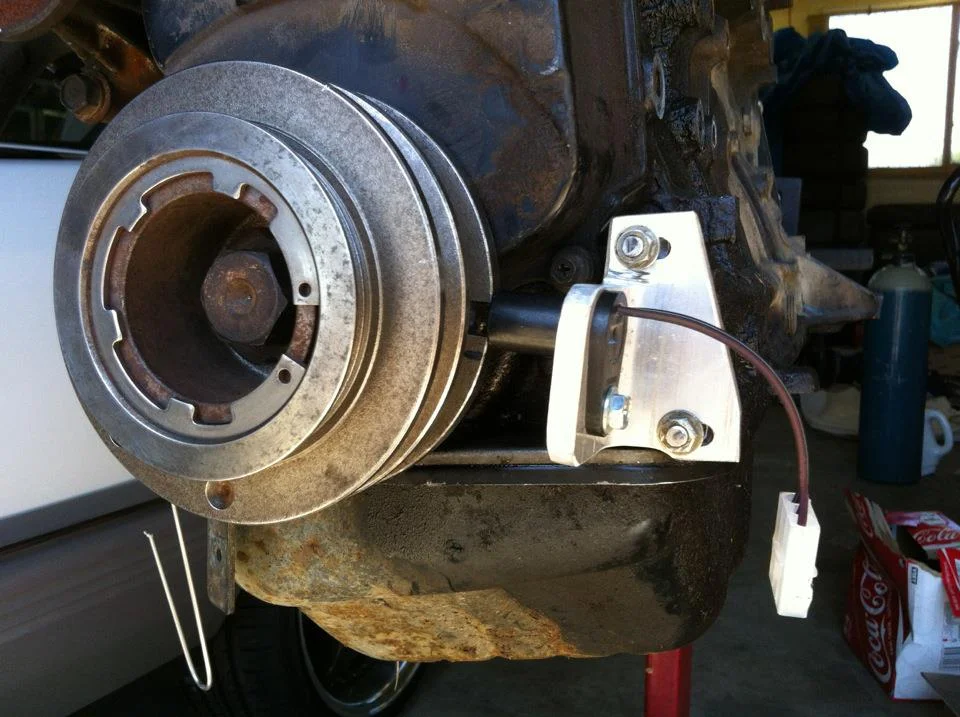

I ended up going this way with mine. Honeywell GT101 hall sensor and 3 notchs in the balancer. Seems to work pretty well so far. Owes me less than $60
