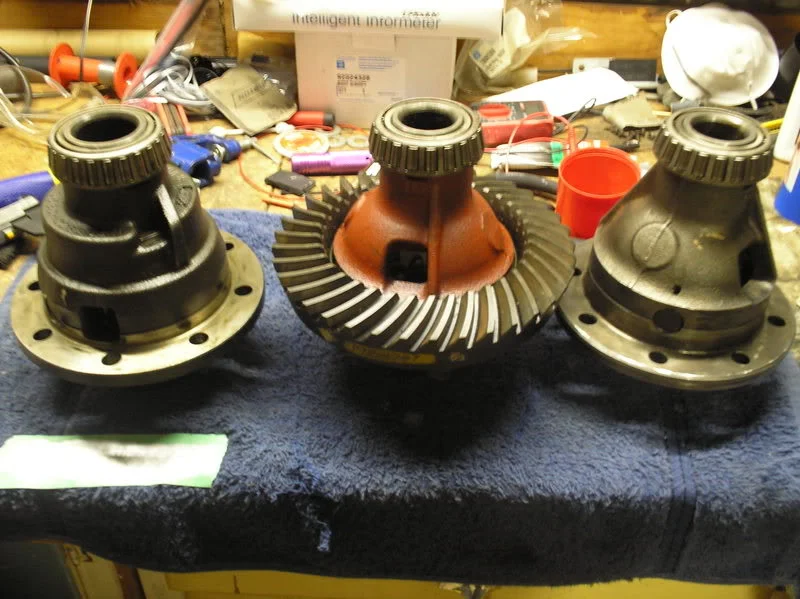

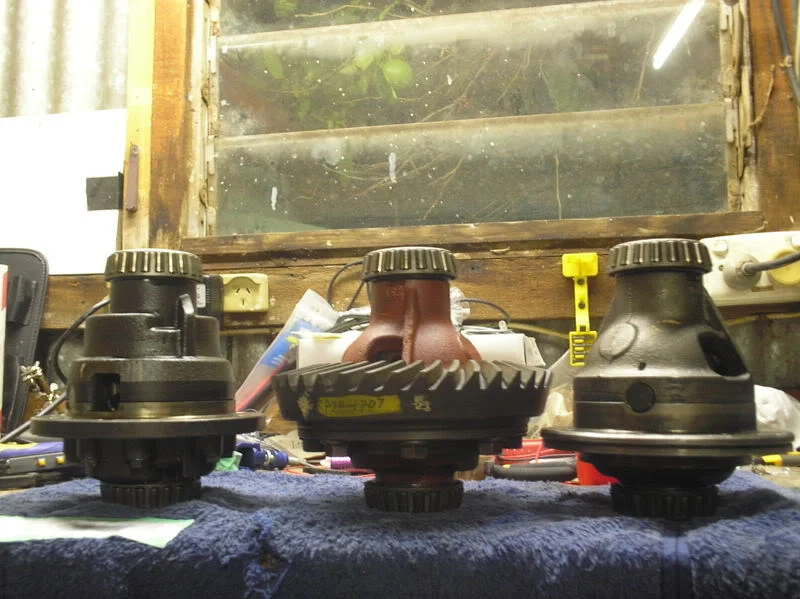

As the title says, is this possible? I have bought a centre that is supposed to be this combination, but I have searched and it doesn't seem to exist. It is definitely 28 spline but I'm not sure what the "Pinion" count refers to. How do I tell? This is the LSD alongside a pintara centre, and a ford 2.77 centre Anyone know what these numbers mean? Any info is greatly appreciated Some original photos have not been recovered yet.

A 4 pinion looks like this, its not a LSD but it shows the 4 pin(well there are only 3 really) Older Valiants ran a 2 pinion 28 spline diff Some original photos have not been recovered yet.

So maybe it's a valiant type? Still suitable I hope... I can't access that link for some reason...*Edit* Got it. it's those round things on the side yeah? What do you make of the centre on the left?

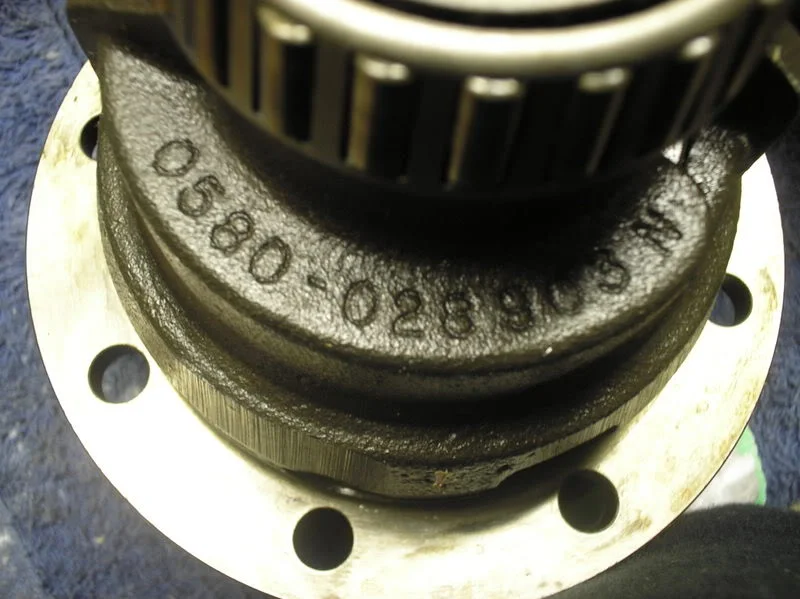

If the LSD with the 0580 Part # is only 2 Pinion (it appears to only have one cross shaft in it) it would be from a model 78 BA Ford diff...... look on the top of it the part number should be 0578 ________

Thanks. A BA centre should still fit a VL housing though right? Do you mean the VL centres should start with 0578?

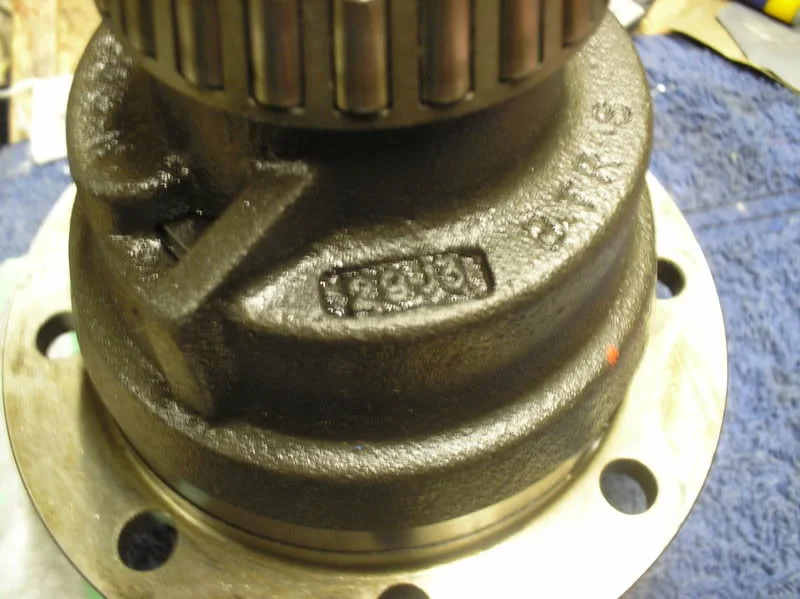

Quote: Originally Posted by VLT-025 Thanks. A BA centre should still fit a VL housing though right? Do you mean the VL centres should start with 0578? Yes the BA one will fit.. The part #'s on the top portion can be either 0578 or 0576 just not 0580 (all the late production lower halves have the 0580 part # it is the top one that you have to look at)

OK just checked the number on the top and it's 0578-028923

Does anyone know what the correct part numbers or lengths are for VL turbo Axles? I have a pair of 28 spline axles here and I need to make sure they are what I was told they are The part numbers on the end of the axles are 0578-050 and 0578-051

Quote: Originally Posted by VLT-025 Does anyone know what the correct part numbers or lengths are for VL turbo Axles? I have a pair of 28 spline axles here and I need to make sure they are what I was told they are The part numbers on the end of the axles are 0578-050 and 0578-051 I am sure you've mis read them as there is no BTR axles with those part #'s VL 28 splines are 0578-950 & 0578-951 You appear to have the correct axles! Some original photos have not been recovered yet.

Quote: Originally Posted by EAT-30T I am sure you've mis read them as there is no BTR axles with those part #'s VL 28 splines are 0578-950 & 0578-951 You appear to have the correct axles! Whoops, thats what I meant! Woohoo! Thanks Some original photos have not been recovered yet.
